Ansible Access – Operational Guide

Overview

Each infrastructure (Cloud and Headquarter) has its own Ansible instance, separated by development stage:

  • dev

  • test

  • prod

Each environment in Cloud is fully isolated and requires dedicated access.

Headquarter can connect to all stages.

Requirements

To access Ansible, all of the following prerequisites must be met:

1. Network connection

You must be connected to the target infrastructure network:

  • Headquarters → Sophos VPN

  • Cloud → WireGuard VPN on the following VLANs:

    • 26 - DEV

    • 27 - PROD

    • 28 - TEST

2. SSH proxy access

Access to Ansible is performed through an SSH proxy, which requires:

  • a valid SSH key

  • prior enablement by the DEVOPS team

If you are not enabled, you must open a request with DEVOPS to obtain access.

Configuration

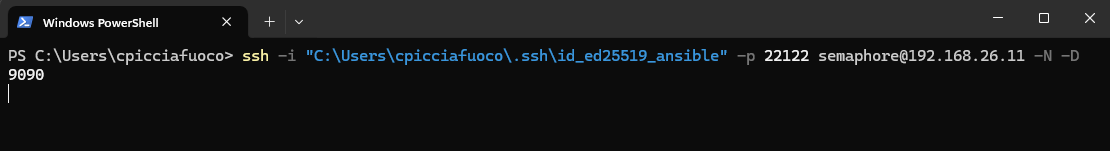

1. Connect to the SSH proxy

Open a terminal and execute the following command:

ssh -i "path\\to\\your\\enabled_ssh_key.pub" \
    -p 22122 semaphore@<ANSIBLE_VM_IP> \
    -N -D 9090

Important notes:

  • If you have only one SSH key, the -i parameter can be omitted

  • All other parameters are mandatory

  • After execution:

    • the terminal will remain attached

    • no output will be displayed

    • this behavior is expected

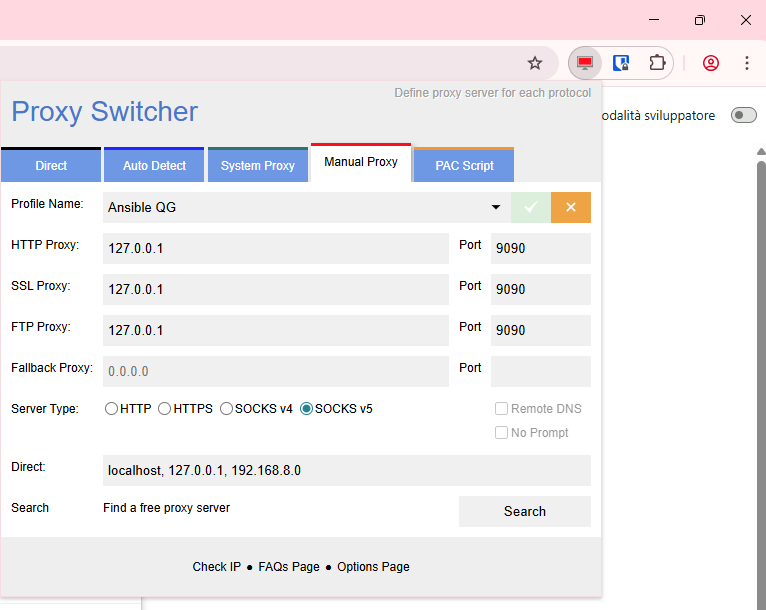

2. Browser configuration

  • a dedicated browser profile (e.g. a secondary profile in Google Chrome)

  • a browser extension capable of routing HTTP/S traffic through a SOCKS proxy (like this)

The extension must be configured to:

  • forward traffic to:

    • Host: localhost

    • Port: 9090

    • Type: SOCKS

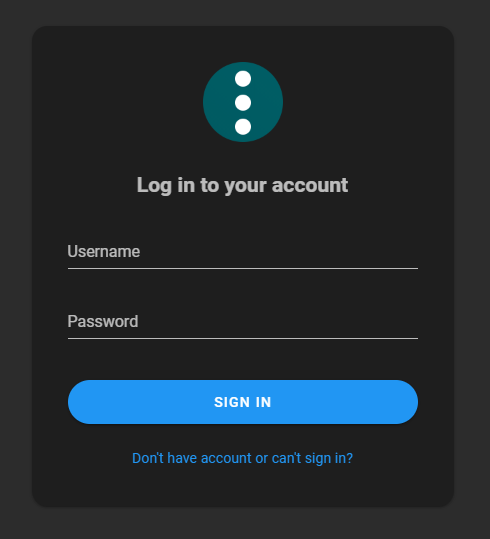

3. Access the Ansible login page

Once the setup is complete:

  1. Open the configured browser profile

  2. Navigate to the Ansible login page

  3. The authentication screen should be displayed

Use the credentials provided by DEVOPS during the enablement request.


Troubleshooting

❌ Cannot connect to the SSH proxy

Possible causes:

  • VPN not connected

  • Development stage VLAN not enabled

  • VPN configuration incorrect

  • Port 9090 already in use by another service

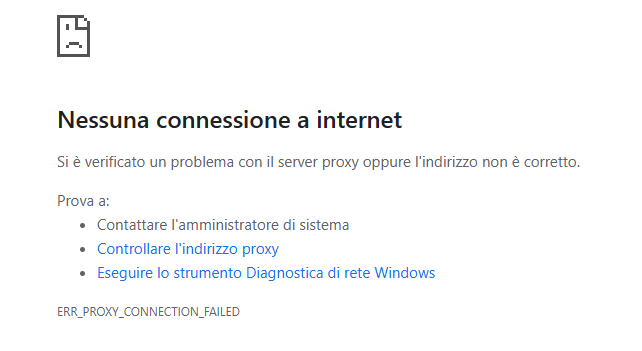

❌ Cannot reach the Ansible login page

Possible causes:

  • Proxy extension not properly configured

    • ensure traffic is routed to localhost:9090

  • Ansible not available

    • this usually indicates the VM is down

Also check the terminal where the SSH proxy was started:

  • if the connection is correct, no logs or errors should appear


❌ Login failed

Possible causes:

  • Incorrect credentials

  • Credentials belong to a different environment (dev / test / prod)

Ensure you are using the correct credentials for the intended:

  • infrastructure

  • development stage

Final notes

  • Keep browser profiles separated to avoid proxy conflicts

  • Close the SSH session when it is no longer needed

  • For persistent issues or doubts, contact DEVOPS
