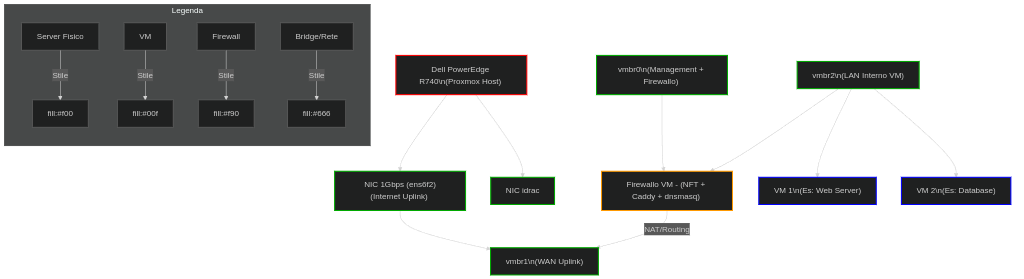

Architettura

graph TD
    %% Stili
    classDef server stroke:#f00,stroke-width:2px;
    classDef vm stroke:#00f,stroke-width:2px;
    classDef firewall stroke:#f90,stroke-width:2px;
    classDef network stroke:#0a0,stroke-width:2px;
    classDef default stroke:#666,stroke-width:1px;

    %% Nodi principali
    Dell740["Dell PowerEdge R740\n(Proxmox Host)"]
    class Dell740 server

    %% Interfacce fisiche
    NIC1G1["NIC 1Gbps (ens6f2)(Internet Uplink)"]
    NIC1G2["NIC idrac"]

    class NIC1G1,NIC1G2,NIC1G3,NIC1G4,NIC40G1,NIC40G2 network

    %% Bridge Proxmox
    vmbr0["vmbr0\n(Management + Firewallo)"]
    vmbr1["vmbr1\n(WAN Uplink)"]
    vmbr2["vmbr2\n(LAN Interno VM)"]
    class vmbr0,vmbr1,vmbr2 network

    %% VM Firewallo (firewall + servizi)
    Firewallo["Firewallo VM - (NFT + Caddy + dnsmasq)"]
    class Firewallo firewall

    %% Altre VM (collegate a vmbr2)
    VM1["VM 1\n(Es: Web Server)"]
    VM2["VM 2\n(Es: Database)"]
    class VM1,VM2 vm

    %% Collegamenti fisici
    Dell740 --> NIC1G1
    Dell740 --> NIC1G2


    %% Bridge Proxmox (configurazione)
    NIC1G1 --- vmbr1


    %% VM collegate ai bridge
    vmbr0 --- Firewallo
    vmbr2 --- VM1
    vmbr2 --- VM2
    vmbr2 --- Firewallo

    %% Firewallo come gateway per le VM
    Firewallo ---|NAT/Routing| vmbr1

    %% Legenda
    subgraph Legenda
        S1["Server Fisico"] ---|Stile| S1Style[fill:#f00]
        S2["VM"] ---|Stile| S2Style[fill:#00f]
        S3["Firewall"] ---|Stile| S3Style[fill:#f90]
        S4["Bridge/Rete"] ---|Stile| S4Style[fill:#666]
    end

Dettagli chiave dello schema

1. vmbr0

   • Usato solo da Proxmox (management) e Firewalla.
   • È virtuale per isolare il traffico di gestione.

2. vmbr1

   • Uplink WAN verso Internet, collegato a eth0 (1Gbps).
   • Firewallo instrada il traffico delle VM verso vmbr1 (NAT).

3. vmbr2

   • Bridge dedicato alle VM (LAN interna).
   • È virtualeper performance.
   • Tutte le VM (es: VM1, VM2) sono connesse qui.

4. Firewallo

   • NFTables: Firewall/routing.
   • Caddy: Reverse proxy (es: HTTPS per le VM).
   • dnsmasq: DNS locale per la LAN.
   • Gateway predefinito per le VM in vmbr2.

5. Flusso traffico

   • VM → Firewalla → Internet: VM1 (vmbr2) → Firewallo (vmbr0) → vmbr1 (WAN).
   • Traffico interno: Le VM comunicano direttamente via vmbr2 (no firewall per LAN-LAN, a meno di regole specifiche).
